X91 45 Degree Hinge
Hinge X91 nickel-plated, 45 degree Emuca
BIS X91 35 AN45 MNI T 48 100
Art.-no. 9501003499
EAN 8432393100883
Individual price display after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +353 61 430200.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 43,000 products
The X91 hinges have a softening piston in order to offer soft door closing. They are available for wooden, with a mounting clip, eccentric adjustment and a large variety of supplements for assembly.
Integrated soft closing mechanism.
Hinge to plate quick fixing system.
For 14 ~ 24 mm door thickness.
Adjustable in 3 dimensions.

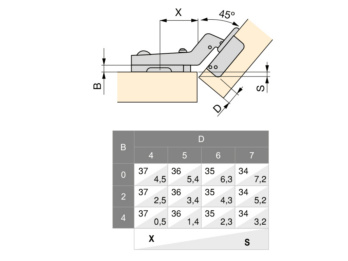

Distance to cup bore edge d = 3 ~ 7 mm.
Depth adjustment by cam.
Integrated soft closing mechanism.
Hinge to plate quick fixing system.
For 14 ~ 24 mm door thickness.
Adjustable in 3 dimensions.
Distance to cup bore edge d = 3 ~ 7 mm.
Depth adjustment by cam.
Product information
Datasheets(X)
 | |
Corresponds to Emuca article number | 1040607 |
Opening angle | 105 |
Door position | Corner |
Damper | Yes |
Spring | Yes |
