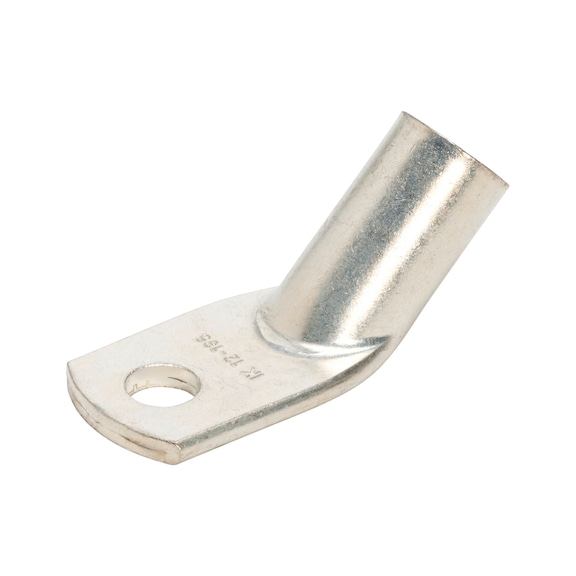

45° angled tube cable lug standard (similar to DIN)

Name: 45° angled tube cable lug standard (similar to DIN)
Brand: Würth
SKU: 5633118512

TUBANGLCBLLUG-45DGR-E-CU-J2N-M12-185SMM

Art.-no. 5633118512

EAN 4058794255058

All versions

Similar products

Individual price display after login

45° angled tube cable lug standard (similar to DIN)

Art.-no. 5633118512

Individual price display after login

Quantity

x 25 pcs

Show availability in Würth shop

Exclusively for trade customers

Login/Register
Call customer service: +353 61 430200

Ideal for multi-stranded round cables in accordance with DIN EN 60228 class 2 and class 5.

Enables secure, reliable connection of round-compacted sector-shaped cables.

Notice

The fitter must check the inserted cable (by trying to pull it out if necessary).

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Wire cross section	185 mm²
Flange hole	M12
Wire diameter (d1)	19 mm
Diameter of hole (d2)	13.2 mm
Sleeve length (a)	32 mm
Width (b)	35.0 mm
Max. temperature resistance	125 °C
Material	Electrolytic copper
Surface	Tin plated

Additional accessory:

Product

Description

Quantity

Price
/PU

Hydraulic crimping tool, WHK 60/22 for half-shell crimping inserts, width 22 mm

CRMPTL-HYDR-WHK60/22-(6-300SMM)

Art.-no. 0967080120

x 1 pcs
